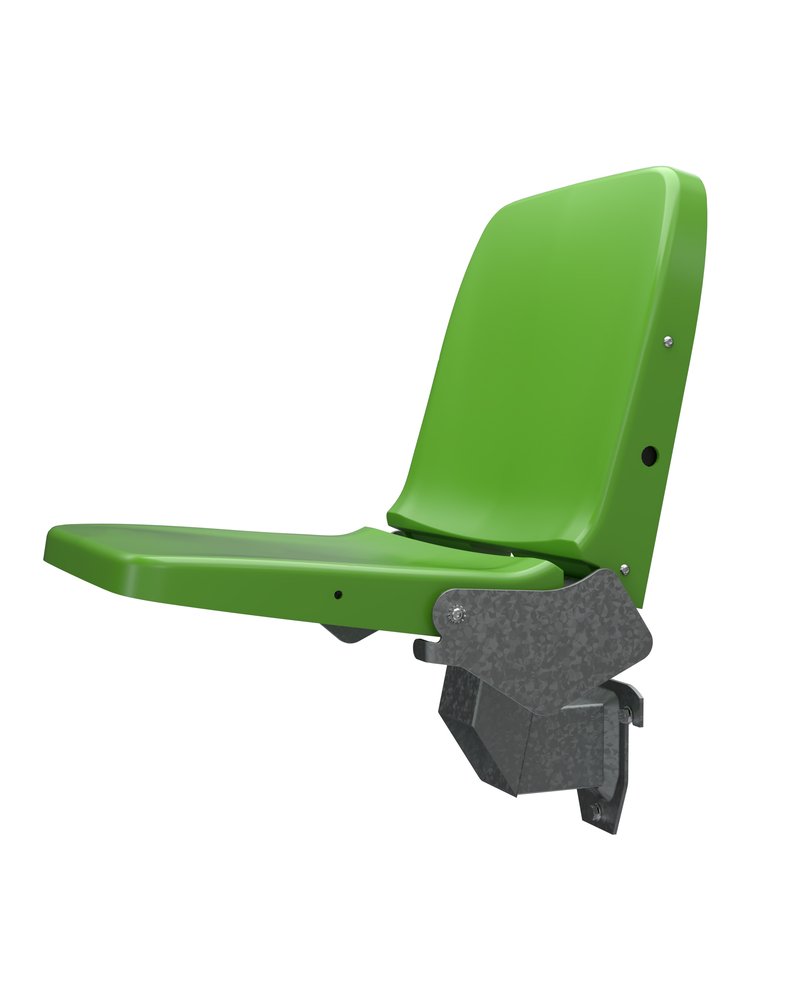

ABM Tip Up seat
ABM Tip Up is injection moulded from stabilised copolymer polypropylene with a gloss surface. The swinging assembly carries reinforcement beams injected in a polymer matrix with glass fibre, which is where the seat takes the load of severe public use. Depth goes from 520 mm in use to 260 mm folded.
The seat tips up either by counterweight or by spring action, through an optional track limitator. Mounting is on mono-arm metal brackets with a base plate on three anchoring points, floor or riser fixed, so the seat can be attached to any grandstand profile; a folding bracket is available for retractable bleachers. The article is made according to UEFA and FIFA recommendations.
| Code | AVDP1017 |
| Origin | EU |
| Type | Tip-up seat, counterweight or spring return |
| Material | Injection moulded stabilised copolymer polypropylene, gloss surface; reinforcement beams of glass-fibre reinforced polymer in the swinging assembly |
| Dimensions | 450 × 520 × 380 mm (width × depth × height); 260 mm depth when folded |
| Colour | Red, blue; custom colours to order |
| Mounting | Floor or riser mounted mono-arm metal brackets with base plate on three anchoring points; folding bracket for retractable bleachers |
| Features | Optional track limitator for the tip-up movement |
| Standard | Made according to UEFA/FIFA recommendations |
| Lead time | 90 days |
