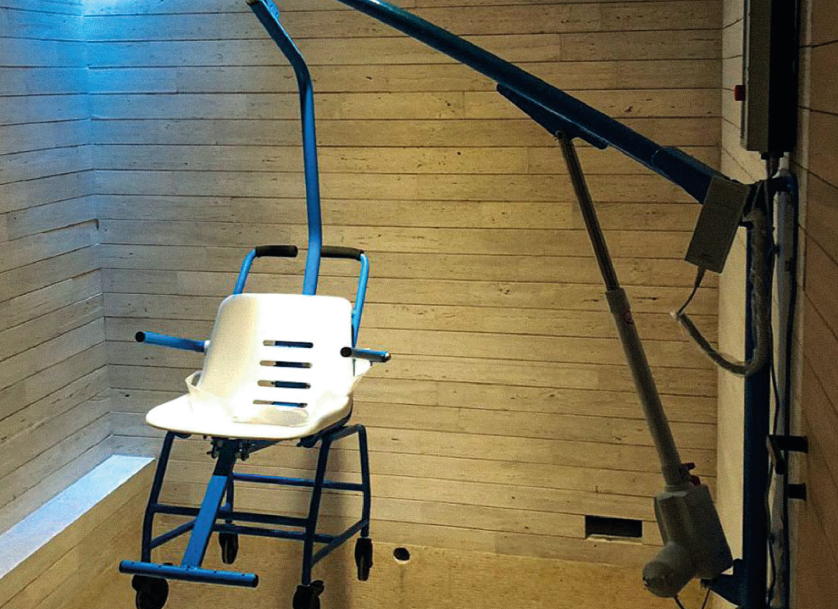

F130 wall-mounted pool lift

F130 hangs off a wall. Its cantilever structure is fixed to a perimeter or load-bearing wall, which removes the need for a foundation in the floor — the reason to choose it when the pool stands above deck level or when there is no room on the floor for a column. The wall itself is the condition: stone, or more than 25 cm thick, with the lift held by dowels or by a safety counter-plate. It is used at raised therapeutic pools built in masonry, at whirlpool baths and at mud-therapy baths in tight rooms.

The arm turns 360 degrees by hand. The lift takes either a seat on a removable trolley, which doubles as transport between the pool and the changing room, or a sling. The user is raised and lowered from a spiral-cable push-button handset rated IPX6 that can be worked from the water; the battery is removable for charging and gives about 50 working cycles. A two-point belt, a retractable leg support, adjustable armrests and an emergency stop complete the set. In-water parts are stainless steel, the structure is galvanised and powder coated.
